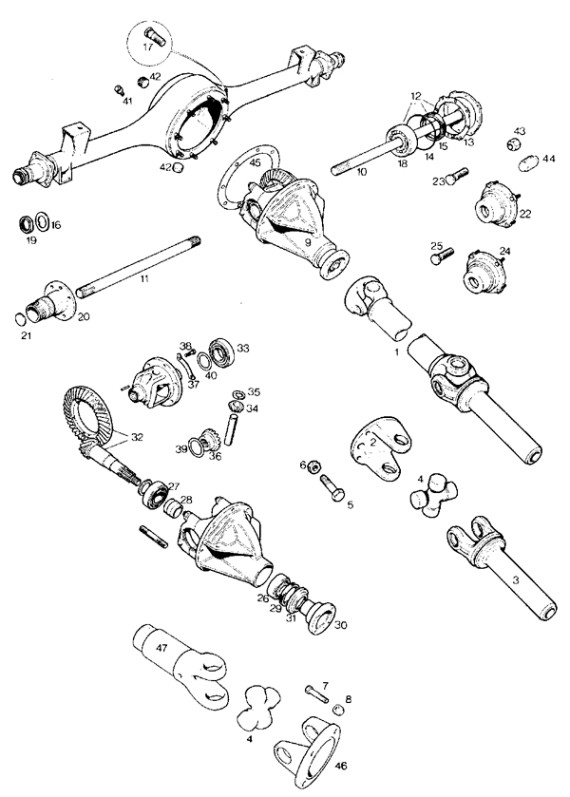

Prop Shaft & Rear Axle Assemblies - Chapter 3 Pages 6-7
Morris Catalog Page 3-7
Records - of

#

Part No

Alt. Part No.

Qty

Description

  DIF130
4.22 CROWN WHEEL & PINION 9 X 38 TEETH CWP / RING & PINION
4.2 TO 1
  BTA1223
CROWN WHEEL & PINION
3.9 TO 1
  DIF104
NUT LEFT REAR WHEEL BEARING HUB LEFT HAND THREAD MORRIS
BEARING RETAINING LH
  DIF103
NUT RIGHT REAR WHEEL BEARING HUB MORRIS MINOR
BEARING RETAINING RH
  2A7087
HUB SOLID WHEEL
STEEL WHEELS
  BTA806
STOCK AXLE SPRIDGET SOLID WHEEL
STEEL WHEELS
  21A2064 21A2064 21A2064 [ check]
WHEEL STUD LUG STANDARD 1 1/2" 8"
STEEL WHEELS
  2K8160
PLUG K51 undefined
WIRE WHEEL HUB
  BTA807
AXLE SPRITE REAR WIRE
WIRE WHEELS
  BTA490
REAR HUB
WIRE WHEELS
  BTA492
STUD WIRE WHEEL
WIRE WHEELS
  BTA689
REAR HUB FLANGE
WIRE WHEELS LH
  BTA688
HUB EXT R/H REAR W/WHL SPM
WIRE WHEELS RH
  GUJ101
UNIVERSAL JOINT, MINI, MORRIS MINOR, SPRITE
FRONT & REAR, 1098, 1275
  37H4149
YOKE SLEEVE
FRONT END, 1098, 1275
  ATA7232
BOLT
DIFFERENTIAL CAGE
  88G577
WHEEL NUT
NON ROSTYLE WHEELS
  21A2064 21A2064 21A2064 [ check]
WHEEL STUD LUG STANDARD 1 1/2" 8"
REAR AXLE CASE
  17H3828
YOKE FLANGE
REAR END, 1098, 1275
  AHA8785
LUG NUT ROSTYLE SPRIDGET 1275 GT MINI 60 DEG. TAPER
ROSTYLE TYPE
  ATA7056
OUTER FLANGE
  DIF119
OIL SEAL DIFFERENTIAL PINION
  DIF149
OIL SEAL REAR HUB TO AXLE see DIF147K for the KIT
  DIF148
O-RING REAR WHEEL BEARING see DIF147K for the KIT
  DIF147K
REAR AXLE WHEEL BEARING KIT W/ SEALS SPRIDGET MORRIS 1 SIDE
  DIF147
REAR BEARING ***SEE DIF147K***
  6K499
PLUG MGB-AH-MGA
  BTA532
SPACER (NO FILLER PLUG)
  1G7439
DUST COVER
  BTA551E
EXC
  BTA1222E
EXCHANGE DIFFERENTIAL
  BTA550E
EXCHANGE DIFFERENTIAL
  BTA551E
EXCHANGE DIFFERENTIAL
  DIF107
GASKET DIFFERENTIAL TO AXLE CASE SPRIGET MORRIS
  GHF273
FLANGE BOLT NUTS
  ATA7037
GEAR SPIDER DIFF
  DIF150
GASKET REAR WHEEL BEARING SPRIDGET MORRIS see DIF147K fr KIT
  ATA7044
LOCKTAB CROWNWHEEL SPRIGET
  DIF102
LOCKWASHR REAR WHEEL BEARING HUB SPRIGET MORRIS
  21H6060
BREATHER MGB
  ATA7166
BRG DIFF INNER
  DIF136
BEARING DIFFERENTIAL
  BTB440
BEARING OUTER PINION
  2A7015
DIFFERENTIAL WHEEL
  2A7062
THRUST CUP WASHER DIFFERENTIAL PINION MINI & MINI COOPER
  ATA7039
THRUST WASHER SPM MIDGET
  LNZ105
NUT MGB & AH & MIDGET
1098 & 1275
  BH605101
PINION FLANGE BOLTS
1098 & 1275
  AHA9053
PROP SHAFT
1098 & 1275
  AHA9053E
PROP SHAFT EXCHANGE
1098 & 1275
  2K7779 A/R
PACKING WASHER
002" " "
  ATA7269 A/R
PACKING WASHER
003" " "
  2K7778 A/R
SHIM PINION .004
004" 2K7778"
  2A7271 A/R
PINION SHIM .010
010" 2A7271"
