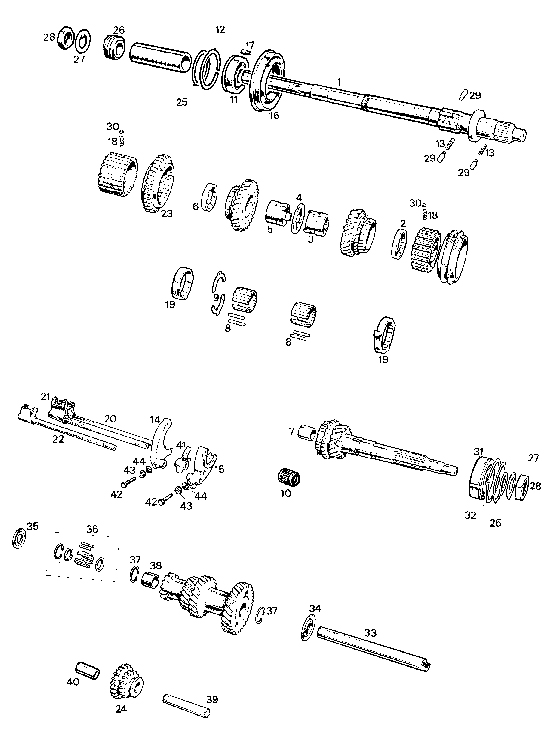

948cc & 1098cc Gearbox Internals - Chapter 3 Pages 3-4
Morris Catalog Page 3-4
Records - of

#

Part No

Alt. Part No.

Qty

Description

  AEA3200
HALF WASHER
SPRITE II & MIDGET I 948CC, 9CG GEARBOX ONLY
  22G149
NEEDLE BRG 3 SYN EACH
SPRITE II & MIDGET I 948CC, 9CG GEARBOX ONLY
  CHM172
SMALL PILOT MINI & MINI COOPER TRANSMISSION BEARING
SPRITE II & MIDGET I 948CC, 9CG GEARBOX ONLY
  2A3298
2ND GEAR BUSH
SPRITE I ONLY 9CC GEARBOX
  2A3290
3RD GEAR BUSH
SPRITE I ONLY 9CC GEARBOX
  2A3034
BUSH BRAKE PEDAL -MINI & MINI COOPER S
SPRITE I ONLY 9CC GEARBOX
  22G374
INTERLOCK
SPRITE I ONLY 9CC GEARBOX
  2A3042
REAR THRUST
SPRITE I ONLY 9CC GEARBOX
  22A213
3RD MOTION SHAFT
SPRITE I ONLY 9CC GEARBOX ( NOT ILLUSTRATED)
  22A550
0.212-0.213" FRONT THRUST WASHER"
SPRITE I ONLY 9CC GEARBOX (SELECTIVE)
  22A538
0.218-0.219" FRONT THRUST WASHER"
SPRITE I ONLY 9CC GEARBOX (SELECTIVE)
  22A536
0.214-0.215" FRONT THRUST WASHER"
SPRITE I ONLY 9CC GEARBOX (SELECTIVE) NOT ILLUSTRATED
  22A367
SPRINGS GEARBOX SYNCHRO _ MINI & MINI COOPER S
ALTERNATIVES 1098CC, 10CG GEARBOXES ONLY
  2A3021
3RD/4TH SEECTOR FORK
ALL 948CC, 9C & 9CG GEARBOXES
  10G141
BEARNG 1ST MOTION ALL SPRITES/MIDGETS
ALL 948CC, 9C & 9CG GEARBOXES
  2A3019
FORK 1&2 GEAR SMOOTH
ALL 948CC, 9C & 9CG GEARBOXES
  22A528 1-2 AS REQ.
SPRING
ALL 948CC, 9C & 9CG GEARBOXES
  6K558
SPRING RING
ALL 948CC, 9C & 9CG GEARBOXES
  BLS107
BALL FOR SLIDER HUB - MINI & MINI COOPER
ALL GEAR BOXES 948 & 1098CC
  2A3245
BEARING
ALL GEAR BOXES 948 & 1098CC
  22G278
CIRCLIP LAYGEAR
ALL GEAR BOXES 948 & 1098CC
  22G277
DISTANCE PIECE
ALL GEAR BOXES 948 & 1098CC
  22G673
LAYSHAFT
ALL GEAR BOXES 948 & 1098CC
  2A3035
LOCKTAB 1ST & 3RD MOTION RIBCASE
ALL GEAR BOXES 948 & 1098CC
  88G396
MINI COOPER TRANSMISSION BEARING LAYGEAR SMALL
ALL GEAR BOXES 948 & 1098CC
  2K6677
NUT, FIRST MOTION SHAFT SPM 948-1098
ALL GEAR BOXES 948 & 1098CC
  88G216
REVERSA SHAFT EARLY
ALL GEAR BOXES 948 & 1098CC
  2A3282
REVERSE BUSH
ALL GEAR BOXES 948 & 1098CC
  2A3284
REVERSE SELECTOR FORK
ALL GEAR BOXES 948 & 1098CC
  2K8737 2K8737 2K8737 [ check]
SHIM BIG BRGS .004" A/R"
ALL GEAR BOXES 948 & 1098CC
  2K8739 2K8739 2K8739 [ check]
SHIM BIG BRGS .010" A/R"
ALL GEAR BOXES 948 & 1098CC
  2A3371
SPEEDO GEAR
ALL GEAR BOXES 948 & 1098CC
  6K558
SPRING RING
ALL GEAR BOXES 948 & 1098CC
  2A3024
WASHER L/SFT;.123-124
ALL GEAR BOXES 948 & 1098CC 0.123 TO 0.124""
  2A3025
LAYGEAR THRUST WASHER .125-126
ALL GEAR BOXES 948 & 1098CC 0.125 TO 0.126" SELECTIVE"
  2A3026
WASHER L/SHFT .127
ALL GEAR BOXES 948 & 1098CC 0.127 TO 0.128""
  2A3027
THRUST WASHER LAYSHFT .130-31
ALL GEAR BOXES 948 & 1098CC 0.130 TO 0.131""
  22A495
LOCATING PEG TRANSMISSION _ MINI & MINI COOPER S
ALL GEAR BOXES 948 & 1098CC AS REQUIRED
  2A3023
WASHER LAYSHAFT LARGE
ALL GEAR BOXES 948 & 1098CC 0.125" 2A3023"
  2A3492
LOCATING SCREW
ALL GEAR BOXES 948 & 1098CC 1/4" " "
  FNZ504
LOCK NUT
ALL GEAR BOXES 948 & 1098CC 1/4" " "
  GHF321
LOCK WASHER undefined
ALL GEAR BOXES 948 & 1098CC 1/4" GHF321"
  2K8738 2K8738 2K8738 [ check]
SHIM BIG BRGS .006" A/R"
ALL GEAR BOXES 948 & 1098CC SELECTIVE
  22A470
1ST/2ND SELECTOR ROD
1098CC, 10CG GEARBOXES ONLY
  22A472
3RD/4TH SEECTOR ROD
1098CC, 10CG GEARBOXES ONLY
  10G184
BEARING 3RD MOTION RIBCASE
1098CC, 10CG GEARBOXES ONLY
  22A463
BEARING HOUSING
1098CC, 10CG GEARBOXES ONLY
  22A469
FORK 1&2 GEAR ALL RIBCASE -NLA
1098CC, 10CG GEARBOXES ONLY
  22A471
FORK 3&4 SELECTOR RIBCASE ++NLA++
1098CC, 10CG GEARBOXES ONLY
  22G157
HALF WASHER 2ND GEAR
1098CC, 10CG GEARBOXES ONLY
  1G3530
LOCATING PEG
1098CC, 10CG GEARBOXES ONLY
  22G146
MAINSHAFT RIBCASE
1098CC, 10CG GEARBOXES ONLY
  22G149
NEEDLE BRG 3 SYN EACH
1098CC, 10CG GEARBOXES ONLY
  22A453
REVERSE GEAR
1098CC, 10CG GEARBOXES ONLY
  22A468
REVERSE SELECTOR ROD
1098CC, 10CG GEARBOXES ONLY
  CHM172
SMALL PILOT MINI & MINI COOPER TRANSMISSION BEARING
1098CC, 10CG GEARBOXES ONLY
  22G154
SPRING
1098CC, 10CG GEARBOXES ONLY
  22G2033
TRANSMISSION SYNCHRO BAULK RING - ROVER
1098CC, 10CG GEARBOXES ONLY
  22G257
1ST SPEED GEAR ASSEMBLY
1098CC, 10CG GEARBOXES ONLY, USE ONLY WITH 22G76LAYGEAR
