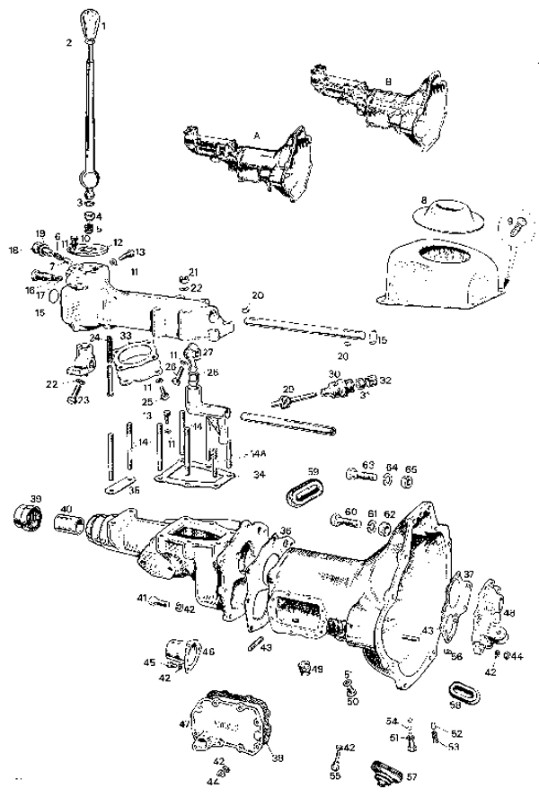

948cc & 1098cc Gearbox Casing & Remote - Chapter 3 Pages 2-3
Morris Catalog Page 3-3
Records - of

#

Part No

Alt. Part No.

Qty

Description

  22A481
GASKET
1098CC GEARBOX
  10G133
GASKET FNT.G/BOX COVR
1098CC GEARBOX
  22G199
DUST PLUG TOP RIBCASE
1098CC GEARBOX ONLY
  22G118
FRONT TRANNY COVER
1098CC GEARBOX ONLY
  BH606131
STARTER BOLT
3/8" " "
  2K5830
PLUG FILL & DRAIN FOR SPRITE/MIDGET AND MORRIS TRANSMISSION
3/4 AF HEAD"
  22G173
GEARBOX TO BACK PLATE BOLT
5/16 1098CC ENGINES"
  SH605091
GEARBOX TO BACK PLATE SCREW
5/16 948CC ENGINES (NOT ILLUSTRATED)"
  GHF202
NUT VARIOUS
3/8" GHF202"
  GHF333
LOCKWASHER 3/8 IN undefined
3/8" GHF333"
  22A85
BOLT for ANTI RATTLE PLUNGER AND SPRING_ MINI & MINI COOPER
CAP
  GSK106
GASKET SET TRANSMISSION RIBCASE & SMOOTHCASE
ALL MODELS ( NOT ILLUSTRATED)
  53K535
STUD LONG
5/16" " "
  53K528
STUD SHORT
5/16" " "
  GHF332
LOCKWASHER 5/16 IN VARIOUS
5/16" GHF332"
  GHF201
5/16 PLAIN NUT
5/16" GHF201"
  9G132
GASKET FRONT COVER
948CC GEARBOX
  9G252
GSKT.TRANS-BELLHOUSNG
948CC GEARBOX
  AEG3124
PLUNGER
UP TO ENG. NO. 9C UH 25508
  AB608031
SCREW, LARGE, GRILLE SURROUND
POSI-DRIVE
  KNOB04/W
MG KNOB WOOD
NOT ILLUSTRATED
  KNOB03/W
AUSTIN HEALEY KNOB WOOD
NOT ILLUSTRATED
  KNOB04
SHIFT KNOB MG VINYL DELUX
NOT ILLUSTRATED
  KNOB03
SHIFT KNOB SPRITE VINYL DELUX
NOT ILLUSTRATED
  22A84
PLUNGER ANTI RATTLE _ MINI & MINI COOPER S
FROM ENG. NO. 9C UH 25509 ( NOT ILLUSTRATED)
  ACA5208
SHIFT GAITER BOOT SPRITE MIDGET
EXCESSIVE WEAR OCCURS IF FITTED UPSIDE DOWN ( NOT ILLUSTRATED)
  SH604051
SCREW
1/4" SH604051"
  GHF101
SET SCREW
1/4" GHF101"
  GHF200
NUT undefined
1/4" GHF200"
  GHF331
LOCKWASHER 1/4 ID SQUARE SECTION VARIOUS "
1/4" GHF331"
  1H3101
LOCATOR
1/4" " "
  53K1435
SCREW
1/4" " "
  SH604041
SCREW
1/4" " "
  SH604071
SCREW
1/4" " "
  53K463
STUD
1/4" " "
  2K4956
WASHER undefined
  AEG3122
WASHER
  WKN404
WOODRUFF KEY
  2A3467
BUSH CUP SPRITE SHIFTER
  2A3468
BUSH SELECTOR**NLA**
  2A3325
BUSH TRANS REAR
  TRS710
0-RING SHIFT BALL TIP
  BLS110
BALL DETENT REVERSE PLUNGER
  9G141
BOOT CLUTCH ARM
  AEG3123
GEARSHIFT ANTI-RATTLE SPRING
  9G222
GASKET SHFT EXT.REAR
  53K1722
LOCK NUT
  9G127
GASKET TRANSMISSION SIDE COVER
  9G221
GASKET SHFT EXT.FRT
  9G233
GASKET EXT.COVER
  2A3076
DUST SEAL LH RUBBER
  2K8158
CORE PLUG
  1G752
DOWEL
  1G3863
SPRING MGB 3 SYNCHRO
  2A3390
SPRING OUTER CUP REMOTE GEARSHIFT ASSEMBLY
  2A3420
SPEEDO PINION GEAR 948 - 1275 SPRITE MIDGET
  22A75
SPRING REVERSE PLUNGER _ MINI & MINI COOPER S
  1B3346
STARTER PINION COVER
  88G214
SIDE PLATE
  2A3385
SELECTOR LEVER
  2A3335
SET SCREW
  22G110
SHIFT KNOB ORIGINAL
  9G204
SEAL REAR TRANS ALL
  AAU2304
SEAL SPEEDO DRIVE SPRITE/MIDGET
  2A3339
RETAINING PLATE
  6K643
REVERSE PLUNGER PLUG
  2A3028
REVERSE SHAFT LOCKING SCREW
  2A3108
PLUNGER G/BOX
  2A3255
OIL SEAL RETAINER
  22A71
PINION RETAINER
