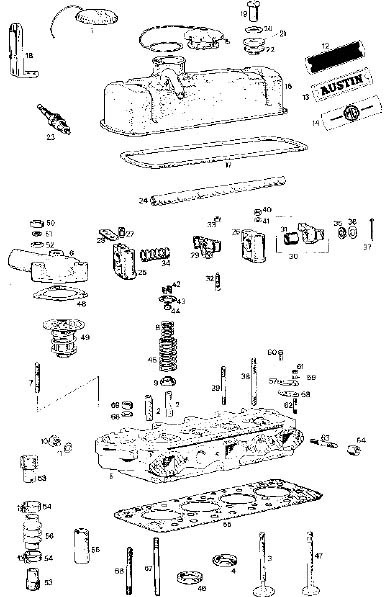

948cc, 1098cc & 1275cc Engine Cyclinder Head - Chapter 1 Pages 0-1
Morris Catalog Page 1-1
Records - of

#

Part No

Alt. Part No.

Qty

Description

  CAM150
STUD CYLINDER HEAD LONG STANDARD EACH
3/8
  CAM151
STUD HEAD SHORT
3/8" CAM151"
  CAM4545
NUT CYLINDER HEAD LATE WITH FLANGE
3/8" CAM4545"
  AEA574
INTAKE VALVE 1.15 x 3.44" EARLY LARGE COLLET"
3a 9CG, 10CG PREFIX ENGINES. SEE VALVE CHART
  12G296
INTAKE VALVE 1.21 x 3.44 SMALL KEEPER"
3B 10CG PREFIX ENGINES. SEE VALVE CHART
  2A639
Inlet valve seat insert
4A 10CG Prefix Engines. Aletrnative
  12G941
INTAKE VALVE 1.3 x 3.57" SMALL KEEPER"
4B 1275cc See Valve chart
  GHF302
WASHER CYLINDER HEAD
3/8" GHF302"
  GHF301
FLAT WASHER
5/16" " "
  51K1473
STUD SHORT-ROCKER
5/16" 51K1473"
  51K885
STUD LONG-ROCKER
5/16" 51K885"
  53K487
STUD MANIFOLDS TO HEAD.
5/16" 53K487"
  CHS2515
STUD THERMOSTAT STOCK
5/16" CHS2515"
  GHF201
5/16 PLAIN NUT
5/16" GHF201"
  GHF261
MANIFOLD NUT BRASS SHORT
5/16" GHF261"
  GHF332
LOCKWASHER 5/16 IN VARIOUS
5/16" GHF332"
  53K402
STUD HEATER VALVE (each)
60 SCREW
  12G1902
HOUSING THERMO C/FLOW SPRITE
6B Cross Flow 1275cc
  2A877
INTAKE VALVE 1.094 X 3.44" LARGE COLLET"
9C PREFIX ENGINES
  AEA434
EXHAUST VALVE 1.0 X 3.44" EARLY LARGE COLLET "
9C, 9CG, 10CG25.4MM. SEE VALVE CHART
  AEA762
1.58mm o/s Valve seat Insert
9CG, 10CG Prefix Engines.
  2A640
EXHAUST VALVE SEAT SPRING
ALTERNATIVE
  SH604061
1/4 SCREW"
ALTERNATIVE TO 61 AND 62
  GHF200
NUT undefined
ALTERNATIVE TO 61 AND 62
  GTS104
THERMOSTAT 80C/180F
ALTERNATIVES
  51K1178
NUT MGA,MGB,MIDG-74
CAM 289 ONLY
  GCG1007
HEAD SMALL BORE UNLEADED REBUILT AS USED ON MINI COOPER
CAM4180 Lead Free. Fits 948cc & 1098cc
  BP6ES
NGK SPARK PLUG STANDARD FOR MINI & MINI COOPER, SPRITE, MG
CHAMPION N5 WERE ORIGINALLY FITTED
  CRCP349
PLATE ROCKER CVR MG""
details (page 164, 165)
  2A879
SEAL VALVE STEM 850-1100
EARLY O-RING STYLE
  12A1215
ROCKER ADJUSTER SCREW SMALL FOR ORIG PRESSED STEEL
FOR 2A 964/2A 533
  2A21
BUSH CYLINDER HEAD ROCKER ARM _MINI & MINI COOPER S ETC.
FOR 2A533 CAST ROCKERS ONLY
  51K1177
MANIFOLD NUT BRASS LONG
FOR EASIER FITMENT ON THE CENTER 4 STUDS
  2A21
BUSH CYLINDER HEAD ROCKER ARM _MINI & MINI COOPER S ETC.
FOR FORGED 12G1221 ROCKERS ONLY
  AHT288
SPECIAL WASHER SET
FOR TUNED ENGINES 3/8" " "
  ADU4905
SEAL VALVE STEM LATE
LATE TYPE-WORKS ON ALL VALVES
  2A11
EARLY KEEPER EACH
NLA
  2A533
CAST ROCKER
NO LONGER AVAILABLE
  2A964
PRESSED STEEL ROCKER
NO LONGER AVAILABLE
  12A1968
BRACKET ENGINE SLING
REMOVE BEFORE CLOSING BONNET
  CAM289
ROCKER MK4 SINTERED
REPLACEMENT ROCKER
  12G1221
S TYPE ROCKERARM STEEL 1.3:1 RATIO NO HARDWARE
REPLACEMENT ROCKER, IDEAL FOR TUNED ENGINES
  AEG392
SOLID SPACER
REPLACES 6K556 SPRING ON TUNNED ENGINES
  FNN605
NUT ROCKER ADJ S" "
ROCKERS ONLY
  DECAL01
V/C AUSTIN PLATE
section for
  10M214/PAT/Plate
VALVE COVER PATENT METAL PLATE
See Decal
  AEA401
VALVE SPRING****INCLUDED IN AEA311*****************
Spite I Engines were fitted with single valve springs as standard
  2A180
HEATER VALVE BLANKING PLATE
USE WHEN HEATER IS NOT FITTED
  AEG167
ROCKER ADJUSTER SCREW FOR FORGED TYPE OR MINI COOPER 'S'
USE WITH 12G1221
  12H3376
ROCKER ADJUSTER SCREW FOR FORGED TYPE OR MINI COOPER 'S'
USE WITH SINTERED ROCKER
  12G243
HOUSNG THERM.VERT.FLO
Vertical flow 1098cc, Early 1275cc
  AEA306
THERMO HOUSING 948
Vertical flow 948cc
  12A1950
CYLINDER HEAD ROCKER SHAFT AS USED ON MINI & MINI COOPER
WITH MODITFIED LOCATION SCREW POSITION
  AEG484
BYPASS HOSE - STRAIGHT RUBBER BY-PASS
  AEA403
COLLAR LOCATING(DUAL)
  12A2075
CYLINDER HEAD BYPASS HOSE ADAPTER
  12G1111
CYLINDER HEAD VALVE GUIDE
  6K555
END FLAT WASHER
  8G221
GASKET
  AJM401
GASKET VALVE / ROCKER COVER CORK
  GTG101
GASKET, THERMOSTAT HOUSING
  3H2963
HOSE CLIP
  2A258
LOCATING SCREW
  2A515
LOCKPLATE FOR ROCKER PEDESTAL - MINI & MINI COOPER S
  GFE6000S
Metal Filler Cap
  2A150
NUT VALVE / ROCKER COVER AS USED ON MINI COOPER
  12A1093MS
ORIGINAL CONVOLUTED HOSE
  GHF502
PIN SPLIT
  ADP210
PLUG INTAKE MANIFOLD
  12A501
ROCKER COVER
  12G1927
ROCKER SHAFT POST TAPPED
  12G1926
ROCKER SHAFT POST WITH OIL FEED HOLE - MINI COOPER
  12A1358
SEAL VALVE GROMMET / ROCKER COVER NUT
  2A879
SEAL VALVE STEM 850-1100
  2A18
SPRING WASHER ROCKER SHAFT TENSIONER
  GTS106
THERMOSTAT 88C/190F
  GTS102
THERMOSTAT FOR ALL YEARS OF THE MINI 160F
  6K556
SPRING ROCKER SPACER
  1B2925
VALVE / ROCKER COVER NUT SEAL SPACER
  CAM6822
VALVE ROCKER COVER FLAT TOP ALUMINUM w/ CHROME VENTED CAP
  TAM2068
VALVE SEAT EXHAUST 1.0 LEAD FREE
  AEA311
VALVE SPRING SET 850-1100 - MINI & MINI COOPER
  88G616
VALVE SPRING TOP CAP
  GFE6003
VALVE/ROCKER COVER CAP VENTED PLASTIC AS USED ON MINI CO
  1A2156
WASHER CUP VALVE / ROCKER COVER
  1B3664
WASHER FOR ADP210
  GHF331
LOCKWASHER 1/4 ID SQUARE SECTION VARIOUS "
1/4" GHF331"
  12G1805E
UNLEADED CYLINDER HEAD ASSEMBLED WITH VALVES AND SPRINGS
1275cc Lead Free. 12G940 Casting
  12G1322
EXHAUST VALVE 1.15 X 3.57" SMALL KEEPER LONG STEM 1275CC "
1275CC SEE VALVE CHART
  CAM6823
NUT CHROME VALVE COVER LONG
19A; CHROME PLATED
  1B2925/CH
VALVE / ROCKER COVER NUT SEAL SPACER CHROME
20A; COMPONENTS, USE WHEN FITTING
  1A2156/CH
WASHER CUP V/C CHROME
21A; GAC4068 ALLOY ROCKER BOX COVER
